Download manual ↓ELECTRON GUN POWER SUPPLY
ADSP-HV80+

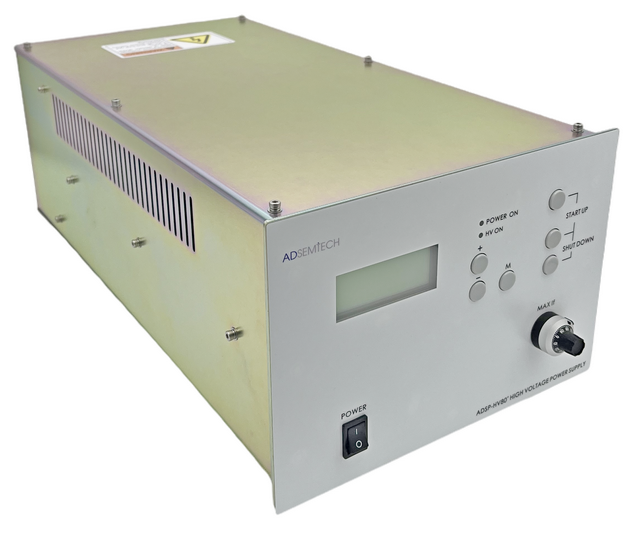

ADSP-HV80+ — a multi-channel high-voltage power supply with filament drive for selected HITACHI CD-SEM systems.
< ±0.02%Output accuracyAfter warm-up, relative to setting
<40 mVOutput ripplePeak-to-peak
0–2.85 AFilament driveConstant-current output
Technical specifications
Source: manual V2609E07, with manufacturer-confirmed corrections.
V00 → −3 kV1,000 μA max.
V10 → +2 kV1,000 μA max.
V20 → +4.68 kV670 μA max.
Vs0 → −3.7 kV1,000 μA max.
| AC input | 100–230 V AC · 1 phase · 50/60 Hz · 40 W |
|---|---|
| HV output accuracy | < ±0.02% of setting, after warm-up |
| HV output ripple | < 40 mV (p-p) |
| Filament drive | 0–2.85 A DC · constant current |
| Dimensions (D × W × H) | 435 × 230 × 165 mm |
| Weight | Approx. 6.5 kg unit / approx. 8.3 kg including HV cable and connector |
All specifications
| Temperature coefficient | < 0.01% / °C |
|---|---|
| Filament current accuracy | < ±0.2% of setting, after warm-up |
| Communication | RS-232 · DB25F · optically isolated |
| Protection | Overload, short circuit, vacuum interlock; If > 3 A; Ie > 511 μA |
| HV cable | 2.2 m · shielded · five HV wires plus separate ground wire |
| Cable construction | PVC outer sheath around the harness; silicone outer jacket on each of the five individual HV wires |
| Operating conditions | Indoor use · 15–30 °C · 35–50% RH, non-condensing |
| Enclosure protection | IP20 |
| Cooling | Forced air; minimum 50 mm clearance on both sides and above recommended |
Compatible systems
Built-in V1/V2 characteristic curves support the following equipment models. Tell us your tool model and existing HV unit part number so we can confirm the required configuration.
S-8820S-8840S-9220S-9260S-9300S-9380CG4000*
* CG4000 requires a separate software upgrade package.
Interfaces & integration
Optically isolated RS-232 (DB25F), vacuum interlock LINK and a dedicated high-voltage connector. The AC input connection depends on the tool series; an adapter cable is provided for S-92XX and S-93XX.
Replacement applications listed in the manual
567-5101 · 560-6590 · 569-6592
